Washing machine

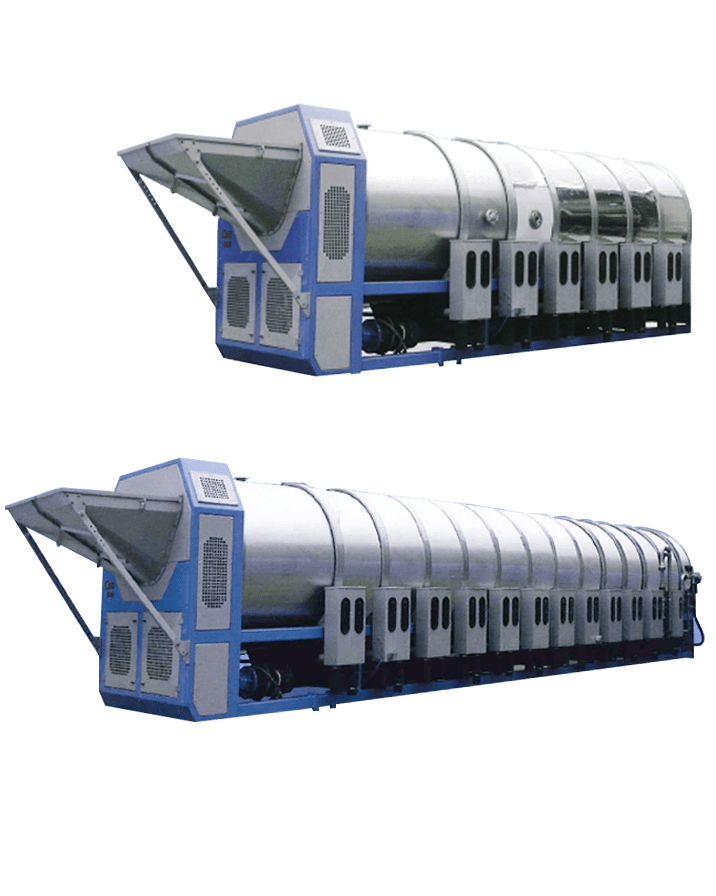

Continuous batch washer

AOW Series

AOW60-4〜AOW-14

Energy Saving, Cost Saving,
Space Saving Continuous Batch Washer

● High washing quality with a large range of movement, batch size, 50kg
● The unit can be fit into narrow spaces and its compact inner drum allows for maximum water and energy saving with compact inner drum.
● The dual-layered construction of outer drum of wash zone retains heat
● Implements Heat Recycling to reduce thermal heat Drastically reduce thermal heat energy by re-using heat of waste water

Capacity
1500kg/h

Technical specification

OPEN

Model

Capacity

batch number

AOW60-4

4batches

AOW60-5

5batches

AOW60-6

6batches

AOW60-7

7batches

AOW60-8

Max

8batches

AOW60-9

50kg/batches

9batches

AOW60-10

10batches

AOW60-11

11batches

AOW60-12

12batches

AOW60-13

13batches

AOW60-14

14batches

Width x Depth x height (mm)

Machine Weight (kg)

2,383 × 5,430 × 3,175

5,800

2,383 × 6,130 × 3,175

6,500

2,383 × 6,830 × 3,175

7,200

2,383 × 7,792 × 3,175

7,900

2,383 × 8,492 × 3,175

8,600

2,383 × 9,192 × 3,175

9,300

2,383 × 9,892 × 3,175

10,000

2,383 × 10,592 × 3,175

10,700

2,383 × 11,292 × 3,175

11,400

2,383 × 11,992 × 3,175

12,100

2,383 × 12,692 × 3,175

12,800

AOW60-13・Catalog

DOWNLOAD

※ Please contact us to dicuss special specification needs

The capacity is calculated in accordance with the standard of industrial washing machine set
by The Japan Society of Industrial Machinery Manufacturers (JIMS).
